  • Product number:MC-000013006763

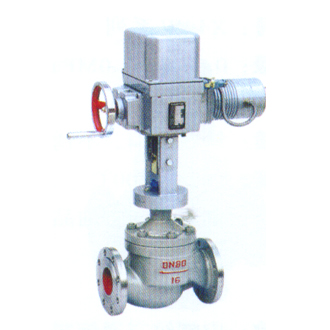

  • Product name:electric sleeve control valve
  • Product Type:ZAZME
  • Product nameplate:SAIC
  • Project Category:temperature meter >> thermocouple >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications

DN(mm)

diameter of valve seat  dn

20

25

32

40

50

65

80

100

125

150

200

(10)

(12)

(15)

(20)

Rated flow coefficient

Straight line

1.8

2.8

4.4

6.9

11

17.6

27.5

44

69

110

176

275

440

690

Equal percentage

1.6

2.5

4

6.3

10

16

25

40

63

100

160

250

400

630

Rated travel (mm)

16

25

40

60

PN(MPa)

1.0 1.6 4.0 6.4

Inherent flow characteristics

Straight lineequal percentage

Rated adjustable ratio

50

Allowed leakage

Single-seat

Hard sealingIV level   soft sealingVI level

Sleeve

Hard sealingII level   soft sealingVI level

Work temperature t(℃)

-20~200 -40~250 -40~450 -60~450

Signal range mA.DC

0~10 4~20

Action mode

Power off    power on

Operation  temperature

Electric adjusting valve-20~70℃  servo amplifier0~50℃

operation humidity

Electric adjusting valve≤95%  servo amplifier≤85%

Power voltage

220V 50Hz 380V 50Hz 24AC/DC
