Home> flow meter >> rotary flowmeter >> LHS Helical Single-Rotor Flowmeter
  • Product number:MC-000027004828

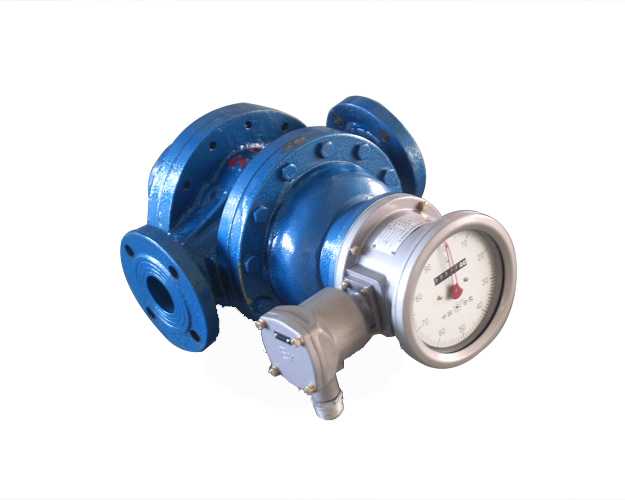

  • Product name:Helical Single-Rotor Flowmeter
  • Product Type:LHS
  • Product nameplate:SAIC
  • Project Category:flow meter >> rotary flowmeter >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications
LHS series helical flowmeter is designed to measure flow for raw oil and liquid of wide viscosity range. It is widely used in high-high water cut oil sand, oil water, diesel, gasoline and light oil. It can display the total flow and instantaneous flow. At the same time, it output analog and impulse signal. LHS series helical flowmeter is high stable, high accuracy, wide range, easy to operate and light weight.
Feature
1、Helical rotor:to measure wide range of viscosity fluid and reduce the impact of wax and other adhesion。
2、Stainless steel metering parts:It is made of stainless steel, to avoid high water content or other corrosive elements when the meter was severe corrosion;
3、Strong wear-resistant material bearing system
4、flow meter converter which installed according to user requirement can display reading and output impulse signal or standard current signal.
5、Light structure, easy installation.
medium
High sand with high water cut crude oil, oily wastewater, diesel fuel, gasoline, light oil, chemical raw materials
Medium viscosity
0.3~400mPa·s
Medium temperature
0~300℃
Nominal Path
25~250 mm
Nominal pressure
PN1.6、2.5、4.0、6.3、2.0、5.0MPa
range
1.2~1200 m3/h
accuracy
0.2、0.5、1.0 grade
material
body
Stainless steel 1Cr18Ni9Ti
rotor
Stainless steel  2Cr13
bearing
Hard alloy  YG6X
Flange standard *
JB/T75-1994,GB/T9112-2000
installation
Horizontal pipe
, ,
