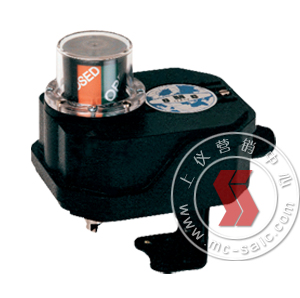

  • Product number:MC-000456004038
  • Product name:position transmitter
  • Product Type:PTL7
  • Product nameplate:SAIC
  • Project Category:actuator >> accessories >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications
PTL7J used with rotary box with limit switch(electric, induction, or pneumatic) or 4-20mA position transmitter. PTL7 suitable for any drive(NAMUR standard) or OMC R99P and PR99E positioner. Impact structure, anti-vibration, low maintenance, high reliability.
Type
Instruction
Mechanical date
PTL7I
Casting aluminum box
anti-corrosive paint
two induction limit switches
Rated voltage
8V DC
Output/current consumption
≥3A
Inductance
15μH
Capacity
45μF
Switching frequency
15μF
Action angle
0…90° adjustable
Connection
Cable gasket PG9, diameter of four-wiring 0.5…2.5mm
Protection level
IP65
Operation temperature
-25…+100℃
PTL7T
Aluminum
anti-corrosive paint
4～20mA position transmitter
Output
4～20mA
D.C voltage
24V
D.C current
30 mV
Input resistance
＞100MΩ
Power consumption
＜0.65W
Accuracy
≤1%
Action angel
0…90° adjustable
Connection
Cable gasket PG9, diameter of four-wiring 0.5…2.5mm
Protection level
IP65
Operation temperature
-20…+70℃
Electromagnetic Compatibility
According to EN50081-2 and EN50082-2
